200kg/H Vacuum Conveyors For Chemical Power Station

Vacuum Conveyors

Vacuum conveyors utilize a pressure differential to cause material to move from one end to the next.

The vacuum feeder is the most advanced, perfect vacuum conveying equipment of powder material, granular material, powder-granular mixture. It can automatically transport a variety of material to mixing machine, packing machine, injection molding machine, grinder, etc…

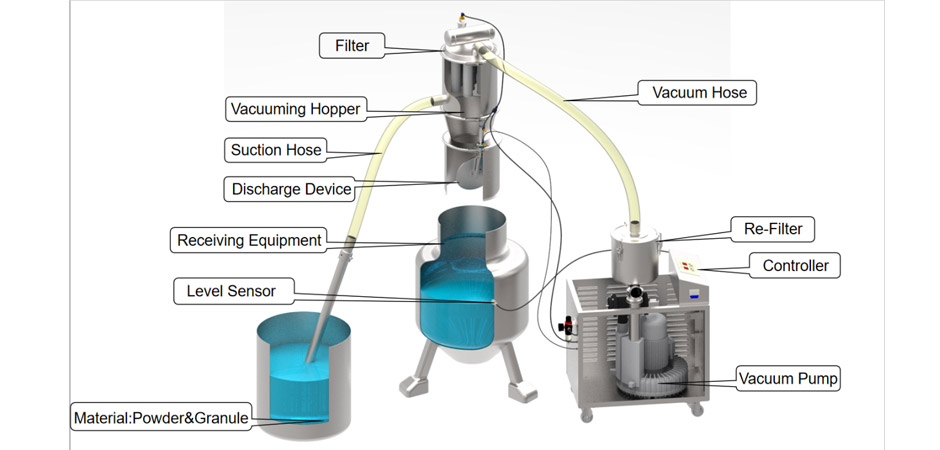

WORKING PRINCIPLE

ZKS vacuum conveyor uses vacuum pump as the power source, when the vacuum pump works, the whole system generates negative pressure to form vacuum airflow, the powder materials along with air are sucked into vacuum hopper through the suction hose, the filter separates the air from the materials, when the material is filled with the vacuum hopper, the controller will automatically cut off the power supply, the vacuum pump stops working, the discharge door opens automatically, and the material falls into the hopper of the feeding equipment. At the same time, the compressed air automatically cleans the filter through the pulse back-blow valve. When the set time is reached or the material level sensor sends the feeding signal, the feeding machine will automatically repeat the previous working cycle.

APPLICATION

There are many applications for vacuum conveyor, they are both flexible and efficient, being useful for recycling, plastic production, chemical and food production, and other general transport operations. Large vacuum conveyors are suitable for transport in bulk bag unloading, dosing and batch feeding of process tanks, mixers and other process equipment. Their tubes can be manipulated to move around existing equipment, making them modular and low-profile.

TECHNICAL PARAMETER
ZKS ELECTRICAL TYPE

Eletric model	Power(kw)	Hopper diameter(mm)	Capacity(kg/h)
ZKS-1	1.5	φ220	200
ZKS-2	2.2	φ220	500
ZKS-3	3	φ290	1000
ZKS-4	5.5	φ420	2000
ZKS-5	5.5	φ420	3000
ZKS-6	7.5	φ420	4000
ZKS-7	7.5	φ600	5000
ZKS10-6-5	7.5	φ600	6000
ZKS-20-2	11	φ600	8000

QVC PNEUMATIC TYPE

Pneumatic model	Air consumption(l/min)	Hopper diameter(mm)	Capacity(kg/h)
QVC-1	180	φ140	100
QVC-2	360	φ220	200
QVC-3	720	φ290	1000
QVC-4	1440	φ420	2000
QVC-5	2880	φ600	3500
