Brand Name : | Sanhe |
Model Number : | Linear Vibrator Screen |
Certification : | ISO9001:2015, CE |
Price : | Negotiable |
Payment Terms : | L/C, T/T |
Supply Ability : | 90 Sets Per Month |
Delivery Time : | Negotiable |

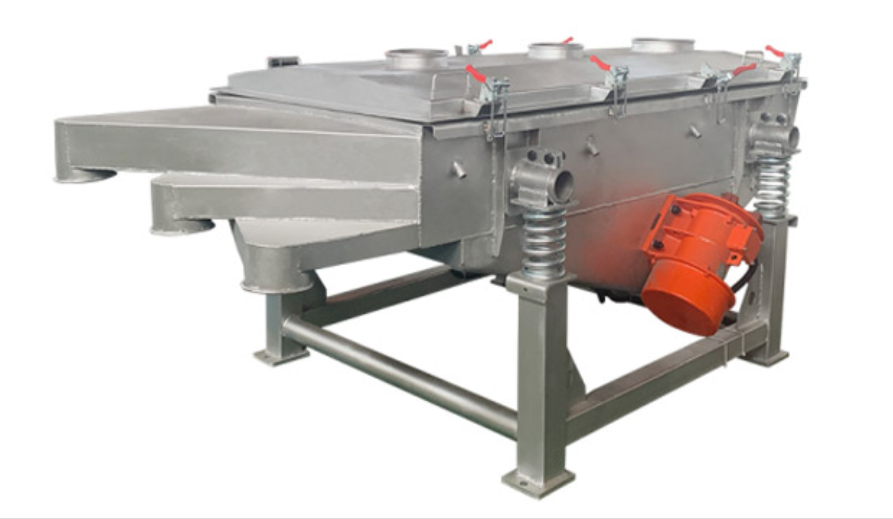

1. Linear Vibrator Screen / Vibrating Screen Equipment for Pharmaceutical
Linear Vibrator
Screen is a kindly of standard and universal screening machine. It
consists of screen frame(screen box), supporting or hanging device,
driving device, vibration isolation and other parts.
2. With two vibrating motors mounted on both sides of the machine
body, or mounted on the bottom base of the machine body, this make
the materials running a straight trace on the sieve to finish the
screening work.
3. Special custom-made service are available, you just need to tell
us your detailed requirements, such as type of material, required
processing capacity, mesh size, your local power voltage, Hz, Phase
etc.
4. Spare parts for free within 12 months warranty period. Our
engineers and sales also provide online real time supports through
Skype, MSN etc.

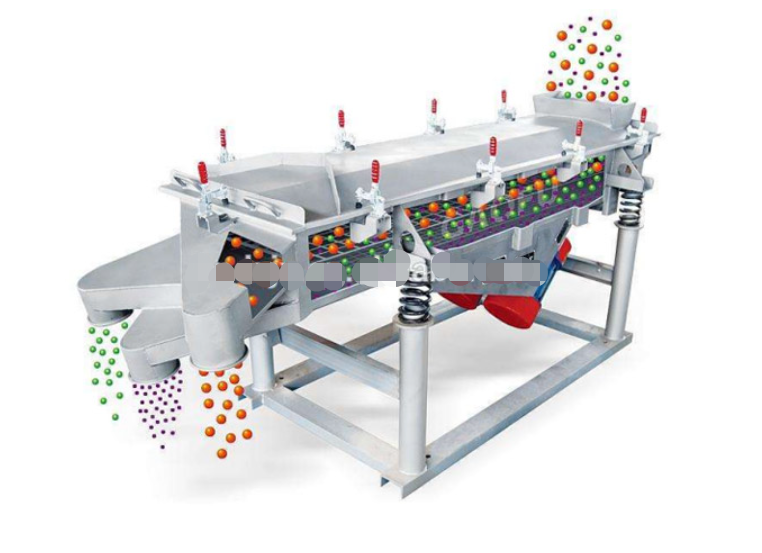

Linear vibrating screen is designed with dual-vibration motor drive.When two vibrating motors rotate reversely in synchronous,the eccentric produce exciting force to offset each other on the parallel direction of motor axis,and stack together with the perpendicular direction of motor axis,so its trajectory is linear.There is a dip on the screen surface where two motor shaft facing to.With the joint effect of vibrating force and material self-gravity,material on screen surface will be tossed forward in rectilinear motion,hence material can be screening and grading.
![]() |
