Full 304 Stainless Steel Ultrasonic Vibrating Screen For Powder Separation

Ask Lasest Price
Brand Name :	Sanhe
Model Number :	Vibrating Screen
Certification :	ISO9001:2015, CE
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	90 Sets Per Month
Delivery Time :	Negotiable

Add to Cart

Product Details
Company Profile

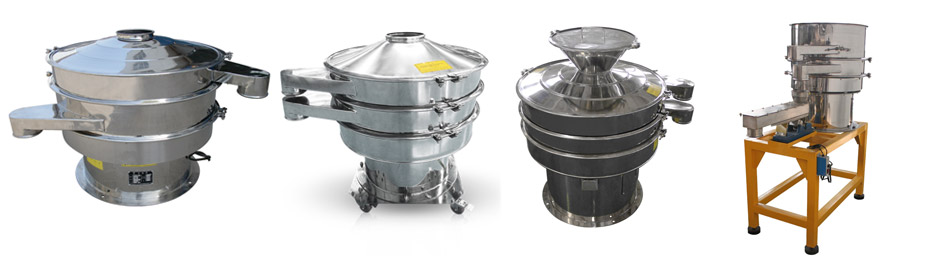

Full 304 Stainless Steel Ultrasonic Vibrating Screen For Powder Separation

Full 304 Stainless Steel Ultrasonic Vibrating Screen for Powder Separation

S49 -B Vibrating Screen is a kind of mature technology,general and tend to be standardized classic inertia screening equipment.It can meet the requirement of most materials in grading granulated stuffs and screening out powder and liquid in different operation.High screening efficiency,it adopts whole sealing structure design which can avoid polluting effectively.The direction of outlet port can be changed within 360 degrees.We can provide customized service according to customers’ requirements.

WORKING PRINCIPLE

When the machine begins running,the operation of the vibrating motor generates exciting force,then under the power of exciting force,the machine body do compound movement,last,the materials on the sieve mesh do jumping movement with the machine body.

PRODUCT PARAMETERS

Model	S494-B	S496-B	S498-B	S4910-B	S4912-B	S4915-B	S4918-B	S4920-B
Diameter(mm)	Φ400	Φ600	Φ800	Φ1000	Φ1200	Φ1500	Φ1800	Φ2000
Deck	1-4			1-5		1-4	1-3
Screen mesh area(mm)	Φ380	Φ600	Φ750	Φ900	Φ1100	Φ14500	Φ1750	Φ1950
Material	All stainless steel, contact material stainless steel, all carbon steel
Mesh size(mm)	3-500
Max particle size(mm)	<20		<30			<50		<60
Power(kw)	0.25	0.6	0.6	0.8	1.5	2.2	2.5	2.5

HOW TO CHOOSE SUITABLE MODEL?

1. If you have ever used the screen machine, kindly pls tell us its DIAMETER, LAYERS, MESH SIZES, MATERIALS.
2. If never use the machine until now, pls offer us the info about material as below:
2.1. Handling material? Bulk density?
2.2. Will you do a separation or dust-removal?
2.3. Production Capacity per hour(KG/H)?
2.4. How many Layers do you need? Mesh size of each layer?
2.5. Material of Construction material?(Stainless steel or Mild Steel) 2.6. Voltage(V), Frequency(Hz), Phase(P)?

APPLICATION

Chemical industry: resin pigment, calcium carbonate, decorative coatings, medicine, grease, paint, palette, etc.
Abrasive material and ceramic industry: building sand, mica, alumina, silica sand, abrasive, refractory material, slurry, etc.
Food industry: sugar, salt, alkali, flour powder, nut powder, whey protein powder , maltodextrin , flavors , sucralose , xanthan gum, soy lecithin ,farina, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
Paper-making industry:coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
Metallurgy and mining industry: quartz sand, sand, ore, titanium oxide, zinc oxide, etc.
Mechanical industry: casting sand, charcoal, grafito, powder metallurgy, electromagnetic material and metal powder, etc
