Ps Flow Thru Separator 1450r/Min High Efficient Screening

PS FLOW-THRU SEPARATOR

PS series flow-thru separator is a kind of new-type,high_efficient screening machine.It offers high capacity wet or dry scalping in a compact,low head room design.Double motors mounted on opposite of body create the 3-D motion that allows maximum flow-thru of material.This machine is ideally suited for prepackaging screening in many food and pharmaceutical applications,as well as for bulk bag unloading and screening of raw ingredients.

WORKING PRINCIPLE

Through the motor vibration to produce excitation force, by adjusting the motor at both ends of the eccentric hammer weight and phase angle can change the size of the exciting force, effectively change the material trajectory, to extend the material on the screen surface to stay

TECHNICAL PARAMETERS

Model	Diameter (mm)	Mesh	Power (kw)	Speed (r/min)	Amplitude (mm)
DZPS-600	600	5-100	0.1*2	1450	3-5
DZPS-800	800		0.2*2
DZPS-1000	1000		0.2*2
DZPS-1200	1200		0.4*2
DZPS-1500	1500		0.4*2

HOW TO PROVIDE US THE DETAILED NEED.( IMPORTANT!!)

– Material (name) that you want to process, with the bulk density, water content(%).
– The necessary process capacity (per hour)- Material contact part, SS304, SS316L and Q235 for option.- The different dimension of the machine can be designed for you.
– Additional parts, like the Mobile wheel and noise-proof base, can be easily fixed and maintained.

>APPLICATION

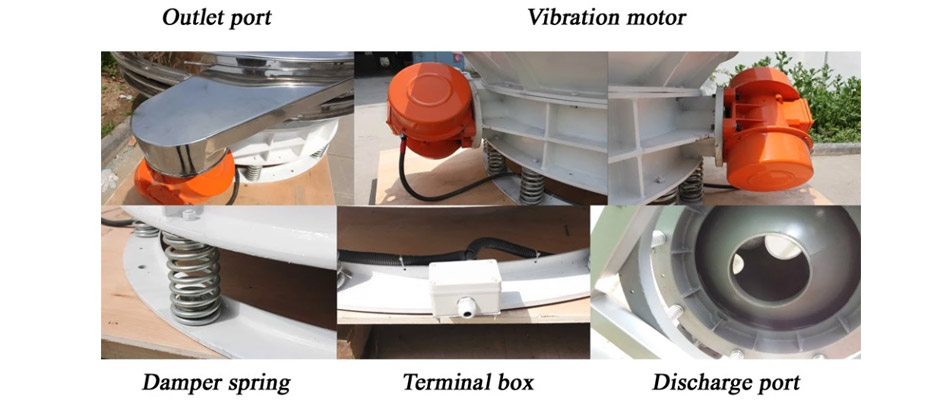

DETAILED IMAGES

CUSTOMIZED MODULE: MACHINE COLOR/MACHINE DIAMETER/SIZE OF COVER OPENING/MACHINE HEIGHT

CUSTOMER SITE

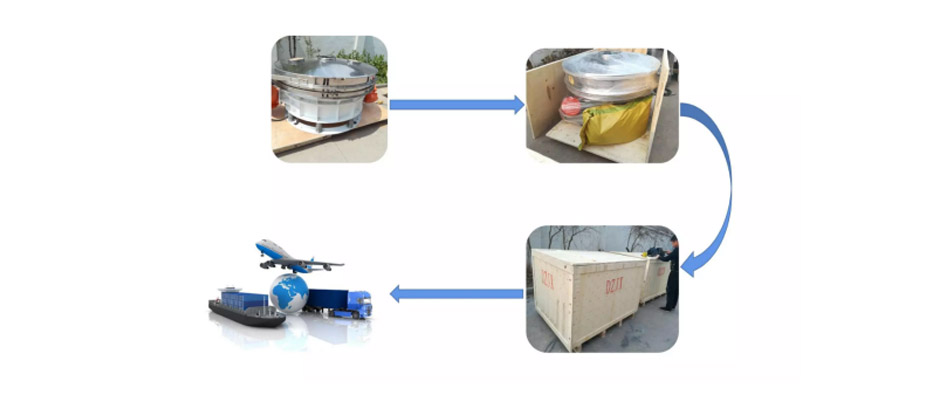

PACKING & DELIVERY
