Hygienic Design Vibration Filter SH450 For Juice Milk Soybean Milk

Ask Lasest Price
Brand Name :	Sanhe
Model Number :	SH450 Vibration Filter
Certification :	ISO9001:2015, CE
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	90 Sets Per Month
Delivery Time :	Negotiable

Add to Cart

Product Details
Company Profile

Hygienic Design Vibration Filter SH450 For Juice Milk Soybean Milk

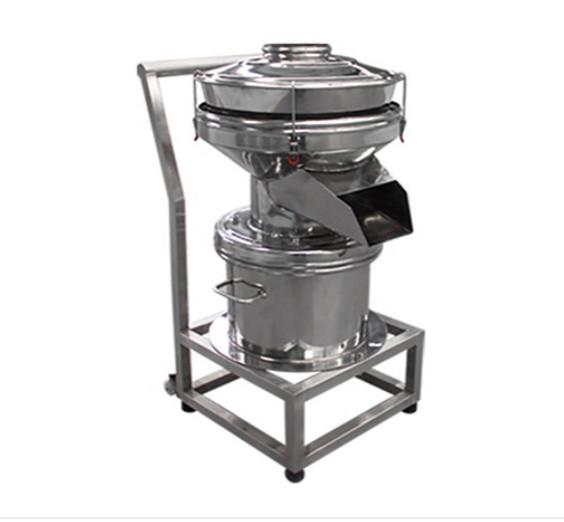

SH450 Vibration Filter

SH450 vibrating filter is a new and highly-efficient filter Machine. It consists of a machine body, vibrating motor, outlet hopper, sieve griddle and control device. It can be widely used in the filting and sieving process of pasty and powder material. The minimum size of the material to be processed is 5 micron, and the maximum number of the mesh is 500.

WORKING PRINCIPLE

450 Type Vibration Filter consists of machine body,vibrating motor,outlet hopper,sieve griddle,e-control device The eccentric hammers change rotation into horizontal, vertical and inclined movement, and then pass the movement to the sieving surface. Adjusting the phase angle on the top and bottom can change trajectories of the materials on the sieve.

APPLICATION

SH450 vibrating filter is applicable to filter juice, milk, soybean milk and other liquid material in food, chemical and other industries.

TECHNICAL PARAMETERS

Model	Overall dimension(mm)	Screening dimension(mm)	Weight(kg)	Power(kw)
SH450	500500660	φ448*135	40	0.18
SH450	5005001000	φ448*135	48	0.18

FEATURES

SH450 vibrating filter adopts a new vibration structure which is more stable, highly efficient and easily handled. The machine has a good-looking, reasonable structure, stable performance and is easily griddle handled, cleaned and its griddle can be easily changed. Especially, it can satisfy the need of changely location.
