2. Silica gel bouncing ball and PU ring:
We adopts the silica gel bouncing ball and PU ring beneath every
screen surface to clean it.
3. Silica gel seal ring:
The silica gel ring has a great sealing effect between every two
decks.
4. Extended copper screw:
We adopts extended copper scrw on every clamp, much safe and
durable.
5. Protective cover:
We could add a extra cover around the springs to ensure fully
enclosed and beautiful appearance.

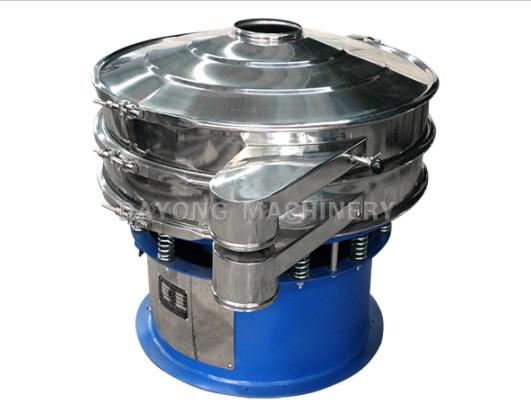

- Diameter of screen(mm): 320-1750
- Sieving precision(mesh): ≤500
- Power(KW): 0.18-1.75
- Layer: 1-3
- Price(USD): 1000-7000
■ Specifications
Attention1:
The rotary vibrating screen is a customizable machine, which can be
manufactured as the customers' different needs.
Attention2:
The rotary vibrating screen also be called as other name in
different country, for example, sometimes will also named it as
rotating vibrtory separator; round separator; vibro screen;
circular screen separator; gyro sifter; gyro screen; Round
Vibrating Sifter; Round Type Vibrating Screen Separator; vibratory
sieve; vibro Shifter; vibro sifter and so on.
Distinctive Features:

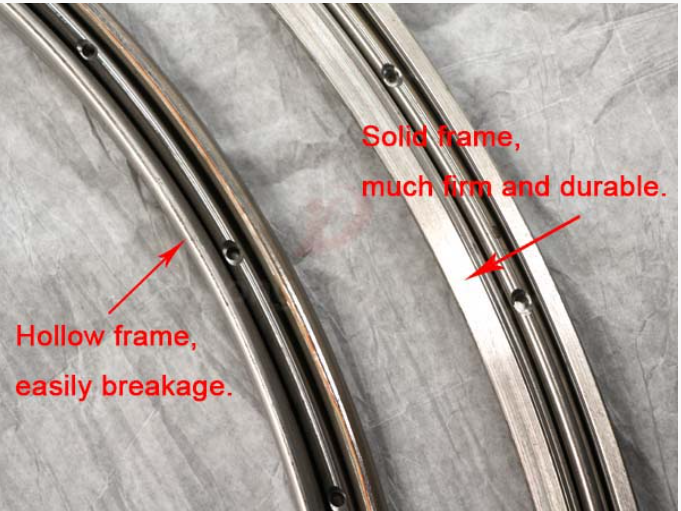

1.Solid frame: We adopts solid frame on the screen frame, much firm
and durable.
Application industries:
1. Chemical industry: resin pigment, medicine, grease, paint, palette, cosmetic, etc.
2. Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast
powder, pollen, food additive, bean milk, juice, etc.
3. Metallurgy industry: aluminum powder, lead powder, copper powder, ore, alloy powder
,electrode powder, manganese dioxide, electrolytic copper powder,
electric magnetic material, polishing powder, refractory material,
etc.
4. Mining industry: kaolin, alumina, carbon, quartz sand,titanium oxide, zinc oxide,
etc.5. Abrasive material and ceramic industry: building sand, mica, alumina, abrasive,refractory material,
slurry, etc.
6. Mechanical industry: casting sand, powder metallurgy, electromagnetic material and
metal powder, etc.
7. Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water
reclamation, etc.
8. Pollution treatment: waste oil, waste water,additives, activated carbon,etc.
■ Technical Data
| Type | Power(KW) | Diameter of screen(mm) | volume(mm) | Layer |
SHDY-400-1S
SHDY-400-2S
SHDY-400-3S | 0.18 | 320 | 580*580*560
580*580*660
580*580*760 | 1
2
3 |
SHDY-600-1S
SHDY-600-2S
SHDY-600-3S | 0.55 | 550 | 800*800*680
800*800*780
800*800*880 | 1
2
3 |
SHDY-800-1S
SHDY-800-2S
SHDY-800-3S | 0.75 | 750 | 900*900*780
900*900*930
900*900*1080 | 1
2
3 |
SHDY-1000-1S
SHDY-1000-2S
SHDY-1000-3S | 1.5 | 950 | 1160*1160*880
1160*1160*1030
1160*1160*1180 | 1
2
3 |
SHDY-1200-1S
SHDY-1200-2S
SHDY-1200-3S | 1.75 | 1150 | 1360*1360*980
1360*1360*1160
1360*1360*1360 | 1
2
3 |
SHDY-1500-1S
SHDY-1500-2S
SHDY-1500-3S | 2.2 | 1450 | 1850*1850*1130
1850*1850*1330
1850*1850*1550 | 1
2
3 |
SHDY-1800-1S
SHDY-1800-2S
SHDY-1800-3S | 3 | 1750 | 2200*2200*1360
2200*2200*1460
2200*2200*1680 | 1
2
3 |
