plastics partical / powder 25kg open mouth bag weighing packing
machine 30-250 Bag per hour

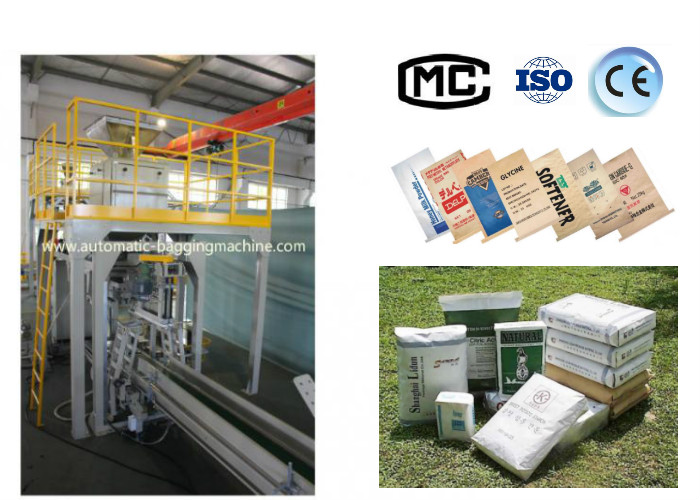

A. What is 25 kg plastics packing machine :
Electronic packing scale consists of weighing unit, sewing machine,
conveying device, pneumatic system, dust removal system,
quantitative packing control, etc. the whole weighing process is
controlled by PLC and completed automatically.
B. Working principle of 25 kg plastics packing machine :
When the electronic packaging scale enters the automatic operation
state, the weighing control system opens the feeding door to start
feeding, which is a fast and slow feeding mode; when the material
weight reaches the fast feeding setting value, stop the fast
feeding and keep the slow feeding; when the material weight reaches
the final setting value, close the feeding door to complete the
dynamic weighing process;
At this time, the system checks whether the bag clamping device In
the predetermined state, when the packaging bag has been clamped,
the system sends a control signal to open the unloading door of the
weighing bucket, and the material enters the packaging bag.
The bag clamping device will be released, and the packaging bag
will fall automatically; after the packaging bag falls, the sewing
bag will be carried out and transported to the next station. It
operates automatically in such a cycle.
C. Generally, a packing & palletizing line includes: Electric
Cabinet, sewing machine,Sewing conveyor, Bag push machine, Reshapen
conveyor,Metal detector,Weight checker,Bag Rejecter,Ink-jet printer
conveyer,Ink-jet printer ,Pallet magazine,Palletizing conveyor
,Robot, Wrapping Machine ,Finished palletizing conveyor.
D. According to the different styles of packaging bags, it can be
divided into open mouth bag packing machine and valve type bag
packing machine.
25 kg plastics packing machine Main specialty :
Scope of application: Applicable materials
General powder or superfine powder
Feeding Form: Vertical Impeller
25 kg plastics packing machine Technical Parameter :
Quantitative range (Kg): 25 Kg
Packing speed (package/hour): 30-250 Bag per hour
Packaging Accuracy: Generally (+) 0.2% (Note: Special materials
according to national or industry standards)
FAQ :
The follwing questions for us to help you find what you want ?
1, The material you want to pack and its size(μm, mm), bulk
density(kg/m3)
2, Packing weight (kg/bag), capacity (t/day)
3, Detailed description of production line
Our core products is :
Big bag packing machine.
Ton bag pack machine.
Ton bag discharger.
10L-1000L liquid filling machine.
Palletizing Line.
It sales well in China and overseas market.
Sanhe--A wellknown packing and palletizing manufacture from China
Our Service :
1. We can provide "one-stop purchasing" or "package program" system
solutions and owns professional manufacturing equipment as well as
a full range of technical support and after-sale service.
2. OEM, Customized can be all accepted.
3. Contact us any time when you feel free.
FAQ :
Q: Can your machine be customized ?
A: Yes, we are a professional manufacturer specilized in
palletizing robot, packaging machine, conveyor etc. for more than
20 years and we have a strong design & technical team. We can
design and manufacture as per your requirements.
Q: How to get an accurate quotation ?
A: Please provide us the detail of the workpiece such as drawing
and dimensions.
Q: What’s the shipping cost from China to your country ?
A: We can send machine to your port by sea or other term you need.
Please kindly tell us your nearest port or address. We have
reliable shipping agent to ensure the safe, convenient and timely
delivery.
Q: Payment terms, MOQ, warranty, Trade Terms
A: Payment terms: down payment against order by T/T, the balance to
be paid on delivery.
Minimum order quantity: 1 set, FOB Shanghai
Delivery time:fast delivery after the deposit.
Warranty: 12 months following delivery. We offer online service 24
hours all day long
You can contact us any time, if urgently, please call us.
Main sub-suppliers:
| Name OF Outsourcing | Sub-suppliers |
| Weighing Controller | Uniplus F701 / Zhi Mei or Jie Man |
| Load Cell | Mettler Toledo / Zhong Dian Hang Ce |
| PLC | Mitsubishi |
| Touch panel ( option ) | Mitsubishi |
| Fold edge sewing machine | De chao |
| Pneumatic Equipment | FESTO or SMC or airtac |
| Solenoid valve | FESTO or SMC or airtac |
| Photoelectric switch | Autonics |
| Metal detector | METRON German |
| Robot | FUJI EC-102 |
| Motor | Wan Nan |
| Sewing machine | De Chao |
| Electric cabinet | Tong Ke |
| General Electric Component | SCHNEIDER |
Utilities ( provided by buyer )
1. Power:
AC380V±10％；50Hz±2%(three phase and five wires)；
2. Compressed Air:
Pressure: 0.55~0.7 Mpa；
Consumption: 0.3N m3/min；
3. Temperature: -10- +50(℃)
4. Relative humidity: ≤90% (no coagulation water)
5. De-dusting
Negative pressure:6-8 pa
Blowing rate: 1800m³/H
Advantage : Fast packing speed , high precision, less dust
