25Kg Packing Scale Weighing Bagging Machine 3 KW Speed 60 - 200
bags ( 25 kg / bag )
A. What is 25 kg electronic packing scale:
Electronic packing scale consists of weighing unit, sewing machine,
conveying device, pneumatic system, dust removal system,
quantitative packing control, etc. the whole weighing process is
controlled by PLC and completed automatically.
B. Working principle of 25 kg electronic packaging scale:
When the electronic packaging scale enters the automatic operation
state, the weighing control system opens the feeding door to start
feeding, which is a fast and slow feeding mode; when the material
weight reaches the fast feeding setting value, stop the fast
feeding and keep the slow feeding; when the material weight reaches
the final setting value, close the feeding door to complete the
dynamic weighing process;
At this time, the system checks whether the bag clamping device In
the predetermined state, when the packaging bag has been clamped,
the system sends a control signal to open the unloading door of the
weighing bucket, and the material enters the packaging bag.
The bag clamping device will be released, and the packaging bag
will fall automatically; after the packaging bag falls, the sewing
bag will be carried out and transported to the next station. It
operates automatically in such a cycle.
C. Generally, a packing & palletizing line includes: Electric
Cabinet, sewing machine,Sewing conveyor, Bag push machine, Reshapen
conveyor,Metal detector,Weight checker,Bag Rejecter,Ink-jet printer
conveyer,Ink-jet printer ,Pallet magazine,Palletizing conveyor
,Robot, Wrapping Machine ,Finished palletizing conveyor.
D. According to the different styles of packaging bags, it can be
divided into open mouth bag packing machine and valve type bag
packing machine.
Product characteristics :
1. Multi-stage frequency conversion design, high packaging
accuracy.
2. They are durable and non-deformable, and have excellent
stability.
3. It can be equipped with explosion-proof control system to meet
the packaging requirements of conductive materials.
4. Dust-free operation, low noise, no spillover, reduce powder
consumption.
5. Adopt imported electronic weighing system, machine automatic
metering, automatic blanking, automatic shutdown.
6. After three independent quality inspections, there are more than
50 main inspection standards to strictly guarantee the quality of
the products.
7. The technology is mature and the failure rate is low.
Advantages :
High accuracy
Easy clean out and maintence
After the machine installs you get hands on training and
documentation
The air flow feed system is capable of high production rates while
maintaining good accuracies.
Operator friendly easy set
Universal and industrial components give the machinery extra long
life
Manufactured to comply above and beyond international standards
PLC controller interface
The flexible and modular Packaging System
FAQ :
The follwing questions for us to help you find what you want ?
1, The material you want to pack and its size(μm, mm), bulk
density(kg/m3)
2, Packing weight (Kg/Bag), capacity (Day/Hour)
3, Detailed description of production line

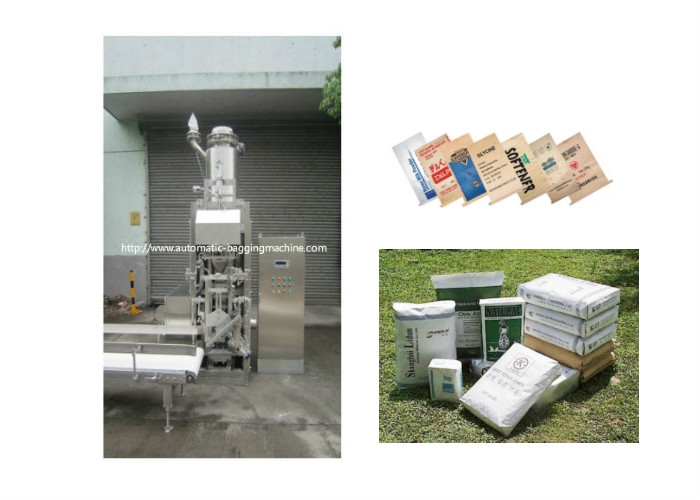

| DCS-25PV3 ( airflow type ) Packing Scale Weighing Bagging Machine |
| Scope of application |
| Suitable materials | Powder and thin granule |
| Suitable packing container | valve type bag |
| Technical parameters |
| Weighing range(Kg) | 25 kg |
| Packing speed(bag/H) | 60 - 200 bags ( 25 kg / bag ) |
| Packing Accuracy | Generally (+/- )0.2%(Note: special materials shall depend on the
industrial standard) |
Main sub-suppliers:
| Name OF Outsourcing | Sub-suppliers |
| Weighing Controller | Uniplus F701 / Zhi Mei or Jie Man |
| Load Cell | Mettler Toledo / Zhong Dian Hang Ce |
| PLC | Mitsubishi |
| Touch panel ( option ) | Mitsubishi |
| Fold edge sewing machine | De chao |
| Pneumatic Equipment | FESTO or SMC or airtac |
| Solenoid valve | FESTO or SMC or airtac |
| Photoelectric switch | Autonics |
| Metal detector | METRON German |
| Robot | FUJI EC-102 |
| Motor | Wan Nan |
| Sewing machine | De Chao |
| Electric cabinet | Tong Ke |
| General Electric Component | SCHNEIDER |
Utilities ( provided by buyer )
1. Power:
AC380V±10％；50Hz±2%(three phase and five wires)；
2. Compressed Air:
Pressure: 0.55~0.7 Mpa；
Consumption: 0.3N m3/min；
3. Temperature: -10- +50(℃)
4. Relative humidity: ≤90% (no coagulation water)
5. De-dusting
Negative pressure:6-8 pa
Blowing rate: 1800m³/H
Advantage : Fast packing speed , high precision, less dust
