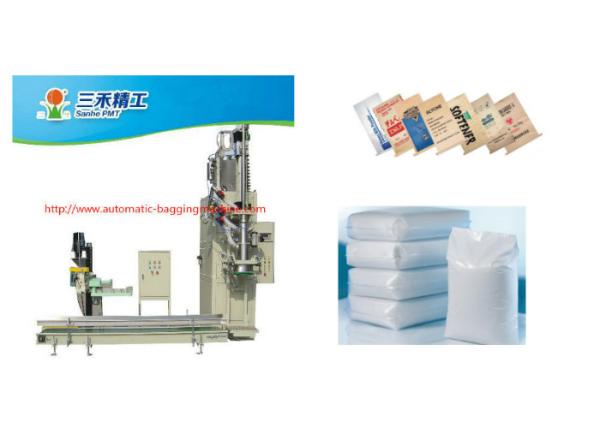

DCS-25FWG 25 Kg Weigh Packing Machine Bags Filling Packer Equipment

A. What is 25 kg electronic packing scale:

Electronic packing scale consists of weighing unit, sewing machine, conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.

B. Working principle of 25 kg electronic packaging scale:

When the electronic packaging scale enters the automatic operation state, the weighing control system opens the feeding door to start feeding, which is a fast and slow feeding mode; when the material weight reaches the fast feeding setting value, stop the fast feeding and keep the slow feeding; when the material weight reaches the final setting value, close the feeding door to complete the dynamic weighing process;

At this time, the system checks whether the bag clamping device In the predetermined state, when the packaging bag has been clamped, the system sends a control signal to open the unloading door of the weighing bucket, and the material enters the packaging bag.

The bag clamping device will be released, and the packaging bag will fall automatically; after the packaging bag falls, the sewing bag will be carried out and transported to the next station. It operates automatically in such a cycle.

C. Generally, a packing & palletizing line includes: Electric Cabinet, sewing machine,Sewing conveyor, Bag push machine, Reshapen conveyor,Metal detector,Weight checker,Bag Rejecter,Ink-jet printer conveyer,Ink-jet printer ,Pallet magazine,Palletizing conveyor ,Robot, Wrapping Machine ,Finished palletizing conveyor.

D. According to the different styles of packaging bags, it can be divided into open mouth bag packing machine and valve type bag packing machine.

Series: Impeller Feeder

This series of machines are designed for super fine powders and granules with medium to high bulk density and small parcel size. The unique impeller design allows for a fast and uniform feed flow to maintain a fast packing speed. Applicable materials include: Cement, Dry Mortar, Kieselquhr, Perlite Additive, Lime Carbonate and Siliceous Dust etc.

Packaging weight: 25 kg
Power consumption: 5 - 7. 5 KW

Product characteristics :
1. Multi-stage frequency conversion design, high packaging accuracy.
2. They are durable and non-deformable, and have excellent stability.
3. It can be equipped with explosion-proof control system to meet the packaging requirements of conductive materials.
4. Dust-free operation, low noise, no spillover, reduce powder consumption.
5. Adopt imported electronic weighing system, machine automatic metering, automatic blanking, automatic shutdown.
6. After three independent quality inspections, there are more than 50 main inspection standards to strictly guarantee the quality of the products.
7. The technology is mature and the failure rate is low.

Our Services :
1. one year guarantee for whole machine except for wear parts;
2. 24 hours technical support by email;
3. calling service;
4. user manual available;
5. reminding for the service life of the wearing parts;
6. installation guide for clients from both China and abroad;
7. maintance and replacement service;
8. whole process trainling and guidance from our technicians.High quality of after-sales service symbolizes our brand and ability. We pursue not only good quality products, but also best after sales service. Your satisfaction is our final purpose.

FAQ :
1. Are you a trading company or a factory?
---We are factory sell directly, and welcome to visit our factory in Changshu city,Suzhou,Jiangsu Province China.
2. Can you guarantee the quality of your valve bag packing machine?
---We have passed CE&ISO9001, and our packing machines have been sent to Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, America, etc.
3. How many years have you been manufacturing this machine?
---Since the foudation of our company, we have been manufacturing the machine, which updated many times, now the machine runs stable and of high quality. we build on the year of 1998.

Changshu Sanhe Precision Machinery & Technology Co., Ltd (originally Changshu Sanhe Measuring Equipment Factory) builded in 1998, was established in 1998 with registered capital of 13.8 million RMB.

The total people of the company is 104, of which 28 are engineers and technicians. Our company is a scientific and technological enterprise specializing in the research and development manufacture and sale of granular and powder packaging machine, liquid filling machine, batching system and automatic packaging (filling) palletizer production line.

Our products are well-selling both at home and abroad, and are widely used in chemical industry, petrochemical industry, fine chemical industry, fertilizer, plastics, rubber, dyes, pigments, food, feed, non-ferrous metals. Metal ore, non-metallic ore, building materials and other industries. Our company is good at dealing with hard-to-pack powder and implementing dustless packaging. Our technical level is in the leading level in the industry. Some of the technology (automatic powder packaging machine with automatic air-removing function) has reached the international advanced level.

Changshu Sanhe Precision Machinery & Technology Co., Ltd is a national high-tech enterprise, Jiangsu high-tech enterprise and Jiangsu private high-tech enterprise. It has a postgraduate workstation in Jiangsu Province, a research and development center of Suzhou automatic packaging and palletizing production line. It has also obtained a national innovation fund, two national key new products and three products are high-tech products in Jiangsu Province. It has obtained ISO Quality Management System Certificate and CMC, and has a perfect after-sales service system. It has obtained 20 national patents, including 12 invention patents. The company also has the right of independent import and export trade.

Annual sales volume is RMB 71,000,000 in 2022.
