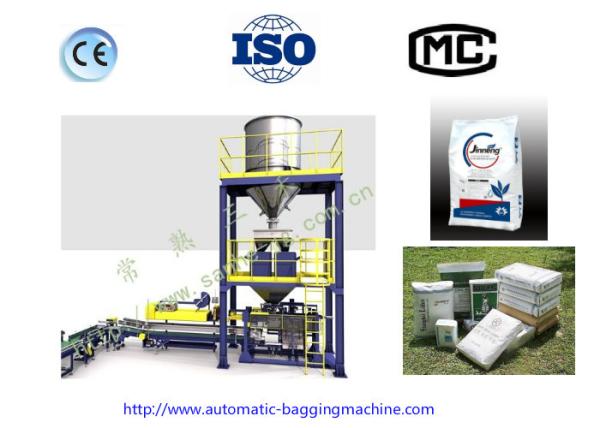

DCS-25 (GO7N)-TW-AL-H Open Mouth Packing Machine
feeding type : by gravity
A. What is 25 kg electronic packing scale:
Electronic packing scale consists of weighing unit, sewing machine,
conveying device, pneumatic system, dust removal system,
quantitative packing control, etc. the whole weighing process is
controlled by PLC and completed automatically.
B. Working principle of 25 kg electronic packaging scale:
When the electronic packaging scale enters the automatic operation
state, the weighing control system opens the feeding door to start
feeding, which is a fast and slow feeding mode; when the material
weight reaches the fast feeding setting value, stop the fast
feeding and keep the slow feeding; when the material weight reaches
the final setting value, close the feeding door to complete the
dynamic weighing process;
At this time, the system checks whether the bag clamping device In
the predetermined state, when the packaging bag has been clamped,
the system sends a control signal to open the unloading door of the
weighing bucket, and the material enters the packaging bag.
The bag clamping device will be released, and the packaging bag
will fall automatically; after the packaging bag falls, the sewing
bag will be carried out and transported to the next station. It
operates automatically in such a cycle.
C. Generally, a packing & palletizing line includes: Electric
Cabinet, sewing machine,Sewing conveyor, Bag push machine, Reshapen
conveyor,Metal detector,Weight checker,Bag Rejecter,Ink-jet printer
conveyer,Ink-jet printer ,Pallet magazine,Palletizing conveyor
,Robot, Wrapping Machine ,Finished palletizing conveyor.
D. According to the different styles of packaging bags, it can be
divided into open mouth bag packing machine and valve type bag
packing machine
Feature :
Open Mouth Bag Automatic Packing & Palletizing for granule and
powder material
The parameter and function table
| DCS-25(GO7N)-TW-AL-H(multi-scale type for granule material) | DCS-25(PO2N)-TW-AL-H(multi-scale type for powder material) |
Scope of application |
Suitable materials | Granular material | powder material with good flowability |
Suitable packing bag | Open mouth bag | Open mouth bag |
Feeding type | Gravity | screw |
Alternative feeding type | vibration | Belt |
Technical parameters |
Automatic supply bag machine | 1 | 1 |
Number of packing scale | 2 | 2 |
Number of discharging material | 1 | 1 |
Weighing range(Kg) | 10-50 | 10-50 |
Packing speed(bag/H) | 800-1200 | 600-1200 |
Packing Accuracy | Generally (+/- )0.2%(Note: special materials shall depend on the
industrial standard) |
Product Characteristics
Easy to operate and use
Bag-clamp equipment is advanced, material can be fully filled
Fill material system has material-stop equipment, accuracy high
Control, work parts all use imported parts, stable and reliable
with sewing machine
Heat-sealing machine optional
Our Service
1.We can provide "one-stop purchasing" or "package program" system
solutions and owns professional manufacturing equipment as well as
a full range of technical support and
after-sale service.
2. OEM, Customized can be all accepted.
3. Contact us any time when you feel free.
FAQ
Q: Can your machine be customized ?
A: Yes, we are a professional manufacturer specilized in
palletizing robot, packaging machine, conveyor etc. for more than
20 years and we have a strong design & technical team.
We can design and manufacture as per your requirements.
Q: How to get an accurate quotation ?
A: Please provide us the detail of the workpiece such as drawing
and dimensions.
Q: What’s the shipping cost from China to your country ?
A: We can send machine to your port by sea or other term you need.
Please kindly tell us your nearest port or address. We have
reliable shipping agent to ensure the safe,
convenient and timely delivery.
Q: Payment terms, MOQ, warranty, Trade Terms
Minimum order quantity: 1 set, FOB Shanghai
Delivery time: Fast delivery after receive the order deposit.
Warranty: 12 months following delivery. We offer online service 24
hours all day long
You can contact us any time, if urgently, please call us.
