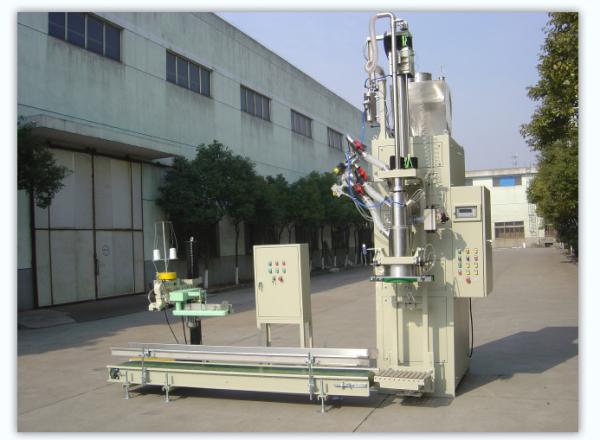

25kg Automatic Powder Bag Filling Sewing Machine
A. What is 25 Kg Bag Food Additive Powder Packing Machine for Potassium sorbate:
Electronic packing scale consists of weighing unit, sewing machine,
conveying device, pneumatic system, dust removal system,
quantitative packing control, etc. the whole weighing process is
controlled by PLC and completed automatically.
The parameter and function table of 25 Kg Bag Food Additive Powder Packing Machine
| DCS-25PV1(1) (exhausting type) | DCS-25PV1(2) (screw type) | DCS-25PV1(3) (airflow type) | DCS-25PV1(5) (horizontal impeller) | DCS-25PV1(6) (vertiacl impeller) |
Scope of application |
Suitable materials |
Powder and ultrafine powder of good Air affinity |
Powder and thin granule |
Powder and thin granule |
Powder and ultrafine powder |
Powder and ultrafine powder |
Suitable packing container | Upper and lower spiral air supply | single screw | air flow | Horizontal impeller | Vertical impeller |
Technical parameters |
Weighing range(Kg) | 10-50 | 10-50 | 10-50 | 10-50 | 10-50 |
Packing speed(bag/H) | 30-180 | 30-120 | 30-200 | 30-250 | 30-250 |
Packing Accuracy |
Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard) |
Control function |
Automatic tare | ○ | ○ | ○ | ○ | ○ |
Automatic quick and slow feeding | ○ | ○ | ○ | ○ | ○ |
Automatic free fall compensation | ○ | ○ | ○ | ○ | ○ |
Automatic minus deviation | ▲ | ▲ | ▲ | × | × |
Automatic over weight alarms | ○ | ○ | ○ | ○ | ○ |
Automatic self diagnosis failure | ○ | ○ | ○ | ○ | ○ |
Manual/Automatic mode conversation | ○ | ○ | ○ | ○ | ○ |
Communication port | ▲ | ▲ | ▲ | ▲ | ▲ |
Regulatory function |
Manual adjusting the height of bag | ○ | ○ | ○ | ○ | ○ |
Suit for open and valve bag function | ▲ | ▲ | ▲ | ▲ | ▲ |
Important auxiliary function |
Blow bag function in advance | ○ | ▲ | ○ | ○ | ○ |
Arch break function of hopper | ○ | ○ | ○ | ○ | ○ |
Vibration at the bottom of the bag | ○ | ○ | ○ | ○ | ○ |
Powder protection |
Inflatable seal | ▲ | × | ▲ | × | × |
Negative pressure dusting(not contain duster) | ○ | ○ | ○ | ○ | ○ |
Automatic blow valve mouth | ○ | × | ○ | ▲ | ▲ |
Safety protection |
Electrostatic grounding | ▲ | ▲ | ▲ | ▲ | ▲ |
ionic wind remove static | ▲ | ▲ | ▲ | ▲ | ▲ |
Stop packing when lose power | ○ | ○ | ○ | ○ | ○ |
Emergency stop | ○ | ○ | ○ | ○ | ○ |
Ex-proof | ▲ | ▲ | ▲ | ▲ | ▲ |
Mark: “○”is standard function；“▲”is choose function ；“×”is not has
function |
main features of 25 Kg Bag Food Additive Powder Packing Machine for Potassium sorbate :
*25 kg Bag Food Additive Powder Packing.
*Can made into semi-packing and palletizing line with conveyors,
sewing machine, heat sealer, fall bag conveyor, reshaping conveyor,
weight checker, reject conveyor, pallet magazine.
B. Working principle of 25 Kg Bag Food Additive Powder Packing Machine for Potassium sorbate :
When the electronic packaging scale enters the automatic operation
state, the weighing control system opens the feeding door to start
feeding, which is a fast and slow feeding mode; when the material
weight reaches the fast feeding setting value, stop the fast
feeding and keep the slow feeding; when the material weight reaches
the final setting value, close the feeding door to complete the
dynamic weighing process;
At this time, the system checks whether the bag clamping device In
the predetermined state, when the packaging bag has been clamped,
the system sends a control signal to open the unloading door of the
weighing bucket, and the material enters the packaging bag.
The bag clamping device will be released, and the packaging bag
will fall automatically; after the packaging bag falls, the sewing
bag will be carried out and transported to the next station. It
operates automatically in such a cycle.
Advantages of 25 Kg Bag Food Additive Powder Packing Machine for Potassium sorbate:
High accuracy
Easy clean out and maintence
After the machine installs you get hands on training and
documentation
The air flow feed system is capable of high production rates while
maintaining good accuracies.
Operator friendly easy set
Universal and industrial components give the machinery extra long
life
Manufactured to comply above and beyond international standards
PLC controller interface
The flexible and modular Packaging System
Operation flow chart :
load on bag--peeling weight--fast feeding--slow feeding--finish
filling--seal / sew bag mouth
Optional operation :
Metal detection ,
Weight checker ,
Kick un-uniform bag,
Printer ,
Automatic palletizer ,
Automatic pallet wrap machine ,
Technical Parameter 25 Kg Bag Food Additive Powder Packing Machine for Potassium sorbate:
Quantitative range (Kg): 5Kg - 50 Kg
Packing speed (package/hour): 30-250 Bag per hour
Packaging Accuracy: Generally (+) 0.2% (Note: Special materials
according to national or industry standards)
FAQ of 25 Kg Bag Food Additive Powder Packing Machinefor Potassium sorbate:
The follwing questions for us to help you find what you want ?
1, The material you want to pack and its size(μm, mm), bulk
density(kg/m3)
2, Packing weight (kg/bag), capacity (t/day)
3, Detailed description of production line
Our core products is :
Semi Automatic 25 Kg Bag Food Additive Powder Packing Machine for Potassium sorbate
Big bag packing machine. 5 kg-50 kg.
Ton bag pack machine.
Ton bag discharger.
10L-1000L liquid filling machine.
Palletizing Line.
It sales well in China and overseas market.
Sanhe--A wellknown packing and palletizing manufacture from China
