Sanhe PMT DCS-1500L(BTW) Liquid Filling Scale Machine ( IBC Upon
Liquid Surface Filling )
Main characteristic :

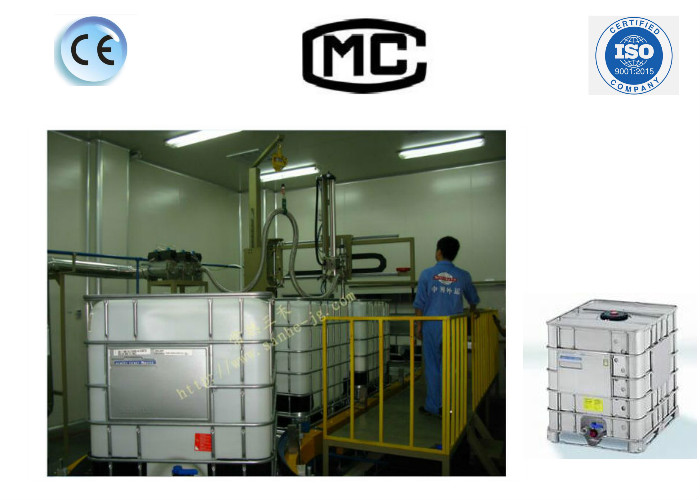

Suit for different kind of pails, cans, drums,ibcs
Can made into semi-automatic or automatic packing line with drum
supplier, conveyor, automatic filling machine, automatic cap
supplier, automatic capping machine, pallet magazine, automatic
stacking machine.
The composition of single line filling machine production line to
improve yield.
The parameter and function table :
| DCS-1500L(BTW) Liquid filling machine (IBC upon liquid surface
filling) |
Scope of application |
Suitable materials | IBC |
Feeding type | Upon liquid surface filling |
Alternative feeding type | Under liquid surface filling |
Technical parameters |
Maximum weighing(Kg) | 1500 |
Filling speed(pails/H, cans/H, drums/H IBCs/H) (dimension of filling lance is DN40, Material supply speed must
more than 208L/H) | 15 (1000liter/IBC) |
Filling accuracy | Generally (+/- )0.2%(Note:1,if material supplying not instability
will effect to filling accuracy.2, special material according to
industrial standard) |
Advantages :
1. one year guarantee for whole machine except for wear parts;
2. 24 hours technical support by email;
3. calling service;
4. user manual available;
5. reminding for the service life of the wearing parts;
6. installation guide for clients from both China and abroad;
7. maintance and replacement service;
8. whole process trainling and guidance from our technicians.High
quality of after-sales service symbolizes our brand and ability. We
pursue not only good quality products, but also best after sales
service. Your satisfaction is our final purpose.
FAQ :
1. Are you a trading company or a factory?
---We are factory sell directly, and welcome to visit our factory
in Changshu city,Suzhou,Jiangsu Province China.
2. Can you guarantee the quality of your packing machine?
---We have passed CE&ISO9001, and our packing machines have
been sent to Eastern Europe, Middle East, Africa, South Asia,
Southeast Asia, Oceania, America, etc.
3. How many years have you been manufacturing this machine?
---Since the foudation of our company, we have been manufacturing
the machine, which updated many times, now the machine runs stable
and of high quality.
The parameter and function table of liquid filling machine
|
DCS-50L(STW) Liquid filling machine(can or pail upon liquid surface filling) |
DCS-250L(STW) Liquid filling machine(drum upon liquid surface
filling) |
DCS-1500L(SUW-P) Liquid filling machine(drum or IBC under liquid surface filling) |
DCS-1500L(BTW) Liquid filling machine(IBC upon liquid surface filling) |
Scope of application |
Suitable materials |
10-50L |
50-250L |
100-250L | IBC |
Feeding type |
Upon liquid surface filling |
Upon liquid surface filling |
Under liquid surface filling |
Upon liquid surface filling |
alternative feeding type |
Under liquid surface filling | × |
Upon liquid surface filling |
Under liquid surface filling |
Technical parameters |
Maximum weighing (Kg) | 100 | 500 | 1500 | 1500 |
Filling speed(pails/H, cans/H, drums/H IBCs/H)(dimension of filling
lance is DN40, Material supply speed must more than 208L/H) | 200-300 (30liter/ pail , 30liter/can) | 60
200liter/drum | 60
200liter/drum | 15
1000liter/IBC |
Filling accuracy |
Generally (+/- )0.2%(Note:1,if material supplying not instability will effect to filling accuracy.2, special material according to industrial standard) |
Control function |
Automatic tare | ○ | ○ | ○ | ○ |
Automatic quick and slow feeding | ○ | ○ | ○ | ○ |
Automatic free fall compensation | ○ | ○ | ○ | ○ |
Automatic minus deviation | ○ | ○ | ○ | ○ |
Automatic over weight alarms | ○ | ○ | ○ | ○ |
Manual/Automatic mode conversation | ○ | ○ | ○ | ○ |
Communication port | ▲ | ▲ | ▲ | ▲ |
Regulatory function |
Adjusting the height of filling lance function | ○ | ○ | ○ | ▲ |
horizontal slip filling lance function | × | ▲ | ○ | ▲ |
Filling protect function |
Self protection when the filling lance not in the right position to
filling | × | × | ○ | ▲ |
If there is no pail, can, drum or IBC, filling machine not filling. | ○ | ○ | ○ | ○ |
Automatic anti-leaking | ▲ | ▲ | ○ | ▲ |
Time control to prevent spilling | ▲ | ▲ | ▲ | ▲ |
Liquid level detecting to prevent spilling | ▲ | ▲ | × | × |
Safety protection function |
Gas exhausting | ▲ | ▲ | ○ | ▲ |
Filling Nitrogen | × | × | ▲ | ▲ |
electrostatic grounding | ▲ | ▲ | ▲ | ▲ |
Protection function when lose power | ○ | ○ | ○ | ○ |
Emergency stop | ○ | ○ | ○ | ○ |
EX-proof function | ▲ | ▲ | ▲ | ▲ |
Mark: “○”is standard function；“▲”is choose function ；“×”is not has
function |
Function
**Load cell measuring mode.
**Waterproof load cells.
**Height can be adjusted to accommodate several pails with
different size.
**leak-proof device. It makes up of a cylinder and a drib-proof
cup.
**a stopper made of PTFE to stop drip after filling.
**Fast / Dribble Feed Control.
**Digital display. Displays gross, net, tares automatically,
automatic free fall compensation.
**Over weight and under weight Alarms.
**Maintenance diagnostics/weighing & safety alarms.
**Manual/Auto mode control.
**The filling time has to be limited. If after the set time has
elapsed, the required weight has not been reached the filling
process is not progressing according to normal operation, then it
should be stopped.
**The filling machine has safety features that filling can only be
started if Pail is placed on the electronic scale and the lance is
inserted property into filling vessel.
Process description
The suppliers of main parts
Weighing Controller : METTLER TOLED
Load Cell : METTLER TOLED
PLC : MITSUBISHI FX-1N
Pneumatics Equipment : FESTO,AIRTAC
FAQ of Liquid filling Machine :
The follwing questions for us to help you find what you want ?
1, The liquid name to be filled ?
2, The liquid features ,such as viscosity ?
3, how many Liters per unit ?
4. how many packing speed ? unit/ hours ?
Our core products is :
Big bag packing machine. 5kg-50kgs.
Ton bag pack machine.
Ton bag discharger.
10L-1000L liquid filling machine.
Palletizing Line.
Sanhe--A wellknown packing and palletizing manufacture from China
