Automatic Robot Empty Bag Feeder 25 Kg Valve Type Bag Weighing
Bagging Packing Palletizing Machine 120-300 Bags/Hour
Automatic Robot Empty Bag Feeder 25 Kg Valve Type Bag Weighing
Bagging Packing Palletizing Machine 120-300 Bags Per Hour
Broad Category: Valve Bag Automatic Packing and Palletizing Line

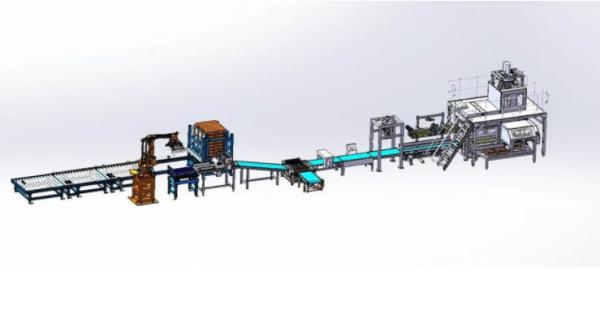

Name: VAPL Valve Bag Automatic Packing and Palletizing Line
1. Scope of application:
1) Applicable material:
Non-sticky, loose powder.
2) Applicable filling containers
The valve bag made of paper or other material with breathable
micropores, such as film with breathable micropores.
2. Technical parameters:
| Item | Short Name | Model Number | Max Capacity (bags/hour) |
| 1. | Single packer type | VAPL-120-25PV3 | 120 |
| 2. | Double packers type | VAPL-200-25PV3X2 | 200 |
| 3. | Triple packers type | VAPL-300-25PV3X3 | 300 |
Note: the actual capacity is affected by the flowability of the
material, the form of the bag, the material of the bag, the size of
the bag and so on.
3. Main Equipments composition
| Item | Equipment | Quantity |
| 1. | Automatic valve bag packer | 1 or 2 or 3 |
| 2. | Automatic empty bag feeder | 1 |
| 3. | Metal detector | 1 |
| 4. | Weight checker | 1 |
| 5. | Rejector | 1 |
| 6. | Filled bag reshaping Conveyor | 1 |
| 4. | Conveyor | Several |
| 5. | Pallet magazine(include pallet feeder) | 1 |
| 6. | Robot | 1 |
| 7. | Power cabinet and Control cabinet | 1 |
Functions and Characteristics:
High degree of automation, Manually only need to put empty bags
into the automatic empty bag feeder, empty pallets into the pallet
magazine, all other processes are automatically completed by the
equipments.
Perfect dedustinging system ensures that no dust escapes to pollute
the environment during packaging.
Functions and Characteristics:
High degree of automation, Manually only need to put empty bags
into the automatic empty bag feeder, empty pallets into the pallet
magazine, all other processes are automatically completed by the
equipments. The specific automation processes is as follows:
Automatic empty bag feeding;
Automatic weighing and filling;
Automatic valve mouth sealing;
Automatic filled bag unloading;
Automatic conveying;
Automatic metal detection;
Automatic weight check;
Automatic rejection;
Automatic filled bag shaping;
Automatic palletizing;
Automatic stack exit.
Perfect dedustinging system ensures that no dust escapes to pollute
the environment during packing.
