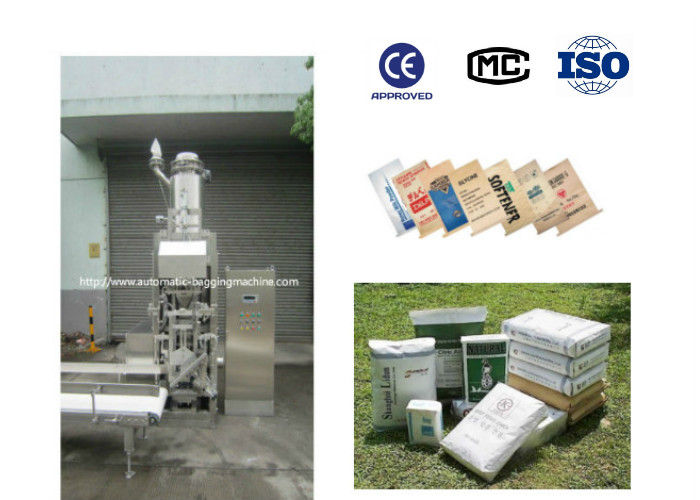

DCS-25PV3 Valve Bag Packer Weighing and bagging machine for
Chemical Design Institute
A. What is 25 kg electronic packing scale:
Electronic packing scale consists of weighing unit, sewing machine,
conveying device, pneumatic system, dust removal system,
quantitative packing control, etc. the whole weighing process is
controlled by PLC and completed automatically.
B. Working principle of 25 kg electronic packaging scale:
When the electronic packaging scale enters the automatic operation
state, the weighing control system opens the feeding door to start
feeding, which is a fast and slow feeding mode; when the material
weight reaches the fast feeding setting value, stop the fast
feeding and keep the slow feeding; when the material weight reaches
the final setting value, close the feeding door to complete the
dynamic weighing process;
At this time, the system checks whether the bag clamping device In
the predetermined state, when the packaging bag has been clamped,
the system sends a control signal to open the unloading door of the
weighing bucket, and the material enters the packaging bag.
The bag clamping device will be released, and the packaging bag
will fall automatically; after the packaging bag falls, the sewing
bag will be carried out and transported to the next station. It
operates automatically in such a cycle.
C. Generally, a packing & palletizing line includes: Electric
Cabinet, sewing machine,Sewing conveyor, Bag push machine, Reshapen
conveyor,Metal detector,Weight checker,Bag Rejecter,Ink-jet printer
conveyer,Ink-jet printer ,Pallet magazine,Palletizing conveyor
,Robot, Wrapping Machine ,Finished palletizing conveyor.
D. According to the different styles of packaging bags, it can be
divided into open mouth bag packing machine and valve type bag
packing machine
Main specialty of our Valve Bag Packer :
Valve bag packing for Powder and ultrafine powder.
Can be twin-type packer
Can made into semi-packing and palletizing line with conveyors,
sewing machine, heat sealer, fall bag conveyor, reshaping conveyor,
weight checker, reject conveyor, pallet magazine, stacker.
◎The parameter and function table of the valve bag packer
| DCS-25PV1(3)(airflow type) |
Scope of application |
Suitable materials | Powder and thin granule |
Suitable packing container | Airflow |
Technical parameters |
Weighing range(Kg) | 25 |
Packing speed(bag/H) | 30-200 |
Packing Accuracy | Generally (+/- )0.2%(Note: special materials shall depend on the
industrial standard) |
Product Characteristics:
Easy to operate and use
Bag-clamp equipment is advanced, material can be fully filled
Fill material system has material-stop equipment, accuracy high
Control, work parts all use imported parts, stable and reliable
with sewing machine
Heat-sealing machine optional
Our Service :
1. We can provide "one-stop purchasing" or "package program" system
solutions and owns professional manufacturing equipment as well as
a full range of technical support and after-sale service.
2. OEM, Customized can be all accepted.
3. Contact us any time when you feel free.
FAQ :
Please Send us The Details We Required :
1. Name of Material to Be Filled in Bag?
2. Wight Capacity of Single Bag ?
3. How Many Bags Fill Per Hour?
4. Your Materials Characte?
The parameter and function table of the valve bag packer:
| DCS-25PV1(1) (exhausting type) | DCS-25PV1(2) (screw type) | DCS-25PV1(3) (airflow type) | DCS-25PV1(5) (horizontal impeller) | DCS-25PV1(6) (vertiacl impeller) |
Scope of application |
Suitable materials |
Powder and ultrafine powder of good Air affinity |
Powder and thin granule |
Powder and thin granule |
Powder and ultrafine powder |
Powder and ultrafine powder |
Suitable packing container | Upper and lower spiral air supply | single screw | air flow | Horizontal impeller | Vertical impeller |
Technical parameters |
Weighing range(Kg) | 10-50 | 10-50 | 10-50 | 10-50 | 10-50 |
Packing speed(bag/H) | 30-180 | 30-120 | 30-200 | 30-250 | 30-250 |
Packing Accuracy |
Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard) |
Control function |
Automatic tare | ○ | ○ | ○ | ○ | ○ |
Automatic quick and slow feeding | ○ | ○ | ○ | ○ | ○ |
Automatic free fall compensation | ○ | ○ | ○ | ○ | ○ |
Automatic minus deviation | ▲ | ▲ | ▲ | × | × |
Automatic over weight alarms | ○ | ○ | ○ | ○ | ○ |
Automatic self diagnosis failure | ○ | ○ | ○ | ○ | ○ |
Manual/Automatic mode conversation | ○ | ○ | ○ | ○ | ○ |
Communication port | ▲ | ▲ | ▲ | ▲ | ▲ |
Regulatory function |
Manual adjusting the height of bag | ○ | ○ | ○ | ○ | ○ |
Suit for open and valve bag function | ▲ | ▲ | ▲ | ▲ | ▲ |
Important auxiliary function |
Blow bag function in advance | ○ | ▲ | ○ | ○ | ○ |
Arch break function of hopper | ○ | ○ | ○ | ○ | ○ |
Vibration at the bottom of the bag | ○ | ○ | ○ | ○ | ○ |
Powder protection |
Inflatable seal | ▲ | × | ▲ | × | × |
Negative pressure dusting(not contain duster) | ○ | ○ | ○ | ○ | ○ |
Automatic blow valve mouth | ○ | × | ○ | ▲ | ▲ |
Safety protection |
Electrostatic grounding | ▲ | ▲ | ▲ | ▲ | ▲ |
ionic wind remove static | ▲ | ▲ | ▲ | ▲ | ▲ |
Stop packing when lose power | ○ | ○ | ○ | ○ | ○ |
Emergency stop | ○ | ○ | ○ | ○ | ○ |
Ex-proof | ▲ | ▲ | ▲ | ▲ | ▲ |
Mark: “○”is standard function；“▲”is choose function ；“×”is not has
function |
main features:
*valve bag packing for Powder and ultrafine powder.
*Can be twin-type packer
*Can made into semi-packing and palletizing line with conveyors,
sewing machine, heat sealer, fall bag conveyor, reshaping conveyor,
weight checker, reject conveyor, pallet magazine, stacker.
