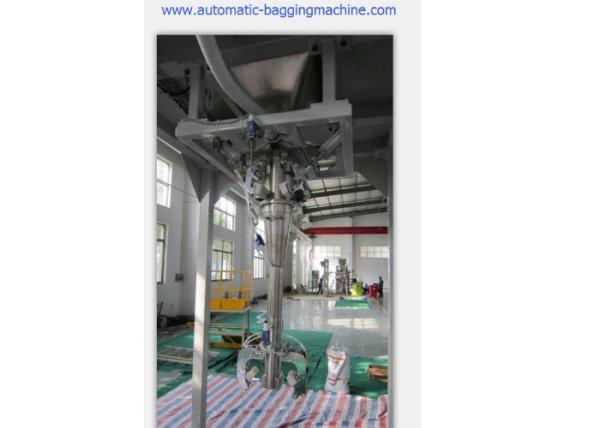

DCS-25FL High Accuracy Automatic Bag Weighing And Filling Machine
Electric Power Supply
A. What is the 25 kg packing machine ?
It is used to transport materials (normally powder or granule )
from the silo to the packaging container, and it also has the
function of weighing,
B. Discription of 25 Kg packing machine ?
Electronic quantitative packaging scale is a combination of
electronic scale and automatic control. It weighs when feeding
until it is close to the preset packaging value. The computer
quantitative packing scale is composed of several independent
weighing units with the structure of feeding and discharging. The
computer quantitative packing scale is suitable for the
quantitative packing of 25kg-50kg, and the electronic quantitative
packing scale is widely used.
C. Application of 25Kg packing machine:
Powder quantitative packaging machine is suitable for the
quantitative packaging of powder, powder and powder materials in
chemical, food, agricultural and sideline products industries, such
as milk powder, starch, pesticide, veterinary medicine, premix,
additive, condiment, feed, enzyme preparation, etc.; powder
quantitative packaging machine is a combination of machine and
instrument, controlled by single chip microcomputer, with automatic
quantitative, automatic filling and automatic adjustment of
measurement error Etc.
The parameter and function table :
| DCS-25FL |
| Scope of application |
| Suitable materials | Granular material or powder material with fine flowability |
| Suitable packing container | Open mouth bag, box, barrel |
| Feeding type | Gravity |
| Alternative feeding type | Vibrator |
| Technical parameters |
| Weighing range(Kg) | 25 kg |
| Packing speed(bag/H) | 160-180 bag / H ( Gross weight ) 200-300 bags / H ( Net weight ) |
| Packing Accuracy | Generally ( +/- ) 0.2% FS, 2δ ( Note : special materials shall depend on the industrial standard
) |
FAQ:
1. MOQ is one set .
2. Quality gurantee.
a strong efficient management for the big bag packing scale team
overseas the product lines to gurantee that QC are well enforced.
100% orders are inspected before delivery .
3. Competive price
We have our own design technology team, our own factory,
factory-to-client pricing made our goods at a very competitive
prices with the overhead
4.Quality service
an excellent sales team will quote you and give you some suggestion
on items with 24 hours
5. Service after sales
Machine warranty one year. supply the spare parts shipment in China
region. Spare parts free of charge are supplied within one warranty
year, easy damaged parts and man-made damage are exclusive, over
one warranty year seller only charge spare part at cost price.
Seller will give buyer long term technology support. Seller offer
buyer side operation manual in English. "
Option 1: (Supervion for Installation and Commission: **USD(
**USD/Person/Day,not contain Round-trip air ticket
expense,Accommodation and transportation expenses at buyer
country.)
Option 2: Buyer can dispatch engineer to do inspection after
production of machines finished, seller are responsible to offer
your engineers' training in free of charge."
6. Our port : Shanghai port
7. Delivery time : usually 3 month after the deposit .
8. Packing way: by wooden pallet
| DCS-25 | DCS-25FW | DCS-25F | DCS-25FL |
Scope of application |
Suitable materials |
Granular material or powder material with fine flowability |
powder material or Fine powder |
powder material |
Easy to bridging or raised dust of ultrafine powder |
Suitable packing container |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
Feeding type |
Gravity |
horizontal screw |
horizontal screw |
Vertical screw |
Alternative feeding type |
Vibrator |
Vibrator, belt |
Vibrator, belt | × |
Technical parameters |
Weighing range | 1-100 | 10-50 | 10-50 | 1-50 |
Packing speed(bag/H) | 300-800 | 100-200 | 100-500 | 100-180 |
Packing Accuracy |
Generally (+/- )0.2% ( Note: special materials shall depend on the industrial standard ) |
Control function |
Automatic tare | ○ | ○ | ○ | ○ |
Automatic quick and slow feeding | ○ | ○ | ○ | ○ |
Automatic free fall compensation | ○ | ○ | ○ | ○ |
Automatic minus deviation | ▲ | ▲ | ▲ | ▲ |
| Automatic over weight alarms | ○ | ○ | ○ | ○ |
| diagnosis failure | ○ | ○ | ○ | ○ |
Manual/Automatic mode conversation | ○ | ○ | ○ | ○ |
Communication port | ▲ | ▲ | ▲ | ▲ |
Regulatory function |
| Manual adjusting the height of bag | ○ | ○ | ○ | ○ |
| Important auxiliary function |
| Arch break function of hopper | × | ○ | ○ | ○ |
| Vibration at the bottom of the bag | ▲ | ▲ | ▲ | ▲ |
| Powder protection |
| Inflatable seal | ▲ | ▲ | ▲ | ▲ |
| Negative pressure dusting(not contain duster) | ▲ | ○ | ○ | ○ |
| Valve for leak-proof | × | ▲ | ▲ | ▲ |
Safety protection |
| Electrostatic grounding | ▲ | ▲ | ▲ | ▲ |
| ionic wind remove static | ▲ | ▲ | ▲ | ▲ |
| when lose power | ○ | ○ | ○ | ○ |
| Emergency stop | ○ | ○ | ○ | ○ |
| Ex-proof | ▲ | ▲ | ▲ | ▲ |
| Original mode | DCS-25 | DCS-25FW | DCS-25F | DCS-25FL |
| Mark: “○”is standard function；“▲”is choose function ；“×”is not has
function |
Main specialty
- Scope of application: Granular material or powder material of
Packing bags(boxes and pails)
- Can be made into twin-type pakcer(except DCS-25(GO7N)和DCS-25(PO4G))
- Can made into semi-packing and palletizing line with conveyors,
sewing machine, heat sealer, fall bag conveyor, reshaping conveyor,
weight checker, reject conveyor, pallet magazine, stacker.
