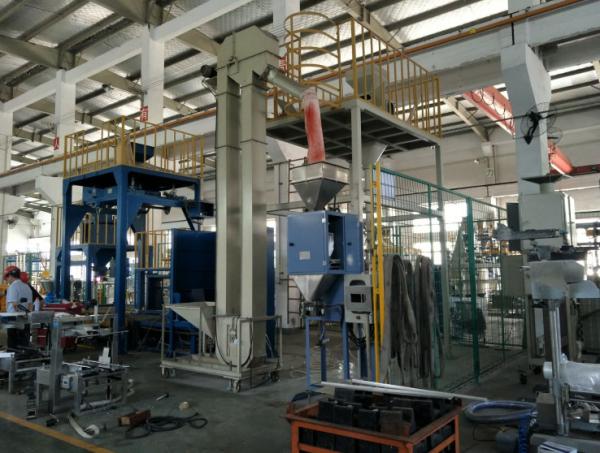

DCS-25 Semi Automatic Weighing Bagging Machine , Filling and Sewing
Machine
A. What is the 25 kg packing machine ?
It is used to transport materials (normally powder or granule )
from the silo to the packaging container, and it also has the
function of weighing,
B. Application of 25Kg packing machine:
Powder quantitative packaging machine is suitable for the
quantitative packaging of powder, powder and powder materials in
chemical, food, agricultural and sideline products industries, such
as milk powder, starch, pesticide, veterinary medicine, premix,
additive, condiment, feed, enzyme preparation, etc.; powder
quantitative packaging machine is a combination of machine and
instrument, controlled by single chip microcomputer, with automatic
quantitative, automatic filling and automatic adjustment of
measurement error Etc.
The parameter and function table :
| DCS-25 |
| Scope of application |
| Suitable materials | Granular material or powder material with fine flowability |
| Suitable packing container | Open mouth bag, box, barrel |
| Feeding type | Gravity |
| Alternative feeding type | Vibrator |
| Technical parameters |
| Weighing range(Kg) | 25 kg |
| Packing speed(bag/H) | 160-180 bag / H ( Gross weight ) 200-300 bags / H ( Net weight ) |
| Packing Accuracy | Generally ( +/- ) 0.2% FS, 2δ ( Note : special materials shall depend on the industrial standard
) |
Our Service :
1. We can provide "one-stop purchasing" or "package program" system
solutions and owns professional manufacturing equipment as well as
a full range of technical support and after-sale service.
2. OEM, Customized can be all accepted.
3. Contact us any time when you feel free for our Open Mouth Weighing And Bagging Machine.
Please Send us The Details for Quatation :
The material (to be packed) parameter :
A. Product name ?
B. Diameter of the material (um or mm) ?
C. Form of product ( Granule or powder ) ?
D. Bulk density(ton/m3) ?
E. Flow ability ?
F. Moisture absorption ?
G. Causticity ?
H. Toxicity ?
I. Degree of ex-proof protection for the packing machine parts ?
Packing Paramete of Bagging Machine :
A. Packing speed (bag/hour) ?
B. Packaging weight per bag ( KG/bag ) ?
C. Weighing accuracy ?
Bag/Bucket Parameter :
A. Open mouth bag or valve type bag?
B. What material of the Bag/Bucket, PP bag, PE bag, Nylon Bag,
Kraft paper, Paper-plastic composite (inner is plastic, outer is
paper) ?
C. Bag size: width*height ( mm ) ?
D. Coiled bags or separate bags ?
| DCS-25 net weight type for granules | DCS-25FW Gross weight type for granules | DCS-25F Net weight type for powder | DCS-25FL Vertical screw type |
Scope of application |
Suitable materials |
Granular material or powder material with fine flowability |
powder material or Fine powder |
powder material |
Easy to bridging or raised dust of ultrafine powder |
Suitable packing container |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
Open mouth bag, box, barrel |
Feeding type |
Gravity |
horizontal screw |
horizontal screw |
Vertical screw |
Alternative feeding type |
Vibrator |
Vibrator, belt |
Vibrator, belt | × |
Technical parameters |
Weighing range | 1-100 | 10-50 | 10-50 | 1-50 |
Packing speed(bag/H) | 300-800 | 100-200 | 100-500 | 100-180 |
Packing Accuracy |
Generally (+/- )0.2% ( Note: special materials shall depend on the industrial standard ) |
Control function |
Automatic tare | ○ | ○ | ○ | ○ |
Automatic quick and slow feeding | ○ | ○ | ○ | ○ |
Automatic free fall compensation | ○ | ○ | ○ | ○ |
Automatic minus deviation | ▲ | ▲ | ▲ | ▲ |
Automatic over weight alarms | ○ | ○ | ○ | ○ |
diagnosis failure | ○ | ○ | ○ | ○ |
Manual/Automatic mode conversation | ○ | ○ | ○ | ○ |
Communication port | ▲ | ▲ | ▲ | ▲ |
Regulatory function |
Manual adjusting the height of bag | ○ | ○ | ○ | ○ |
Important auxiliary function |
Arch break function of hopper | × | ○ | ○ | ○ |
Vibration at the bottom of the bag | ▲ | ▲ | ▲ | ▲ |
Powder protection |
Inflatable seal | ▲ | ▲ | ▲ | ▲ |
Negative pressure dusting(not contain duster) | ▲ | ○ | ○ | ○ |
Valve for leak-proof | × | ▲ | ▲ | ▲ |
Safety protection |
Electrostatic grounding | ▲ | ▲ | ▲ | ▲ |
ionic wind remove static | ▲ | ▲ | ▲ | ▲ |
when lose power | ○ | ○ | ○ | ○ |
Emergency stop | ○ | ○ | ○ | ○ |
Ex-proof | ▲ | ▲ | ▲ | ▲ |
Original mode | DCS-25 | DCS-25FW | DCS-25F | DCS-25FL |
Mark: “○”is standard function；“▲”is choose function ；“×”is not has
function |
Main specialty
- Scope of application: Granular material or powder material of
Packing bags(boxes and pails)
- Can be made into twin-type pakcer(except DCS-25(GO7N)和DCS-25(PO4G))
- Can made into semi-packing and palletizing line with conveyors,
sewing machine, heat sealer, fall bag conveyor, reshaping conveyor,
weight checker, reject conveyor, pallet magazine, stacker.
