20T/h OD 260mm Rotary Automatic Pallet Wrapping Machine Use Rotary Stretch Wrapper

Ask Lasest Price
Brand Name :	Sanhe
Model Number :	DT2000RFZ-FM
Certification :	ISO9001:2015, CE
Price :	To be negotiated
Payment Terms :	L/C, T/T
Supply Ability :	100 Set/Sets per Month
Delivery Time :	To be negotiated

Add to Cart

Product Details
Company Profile

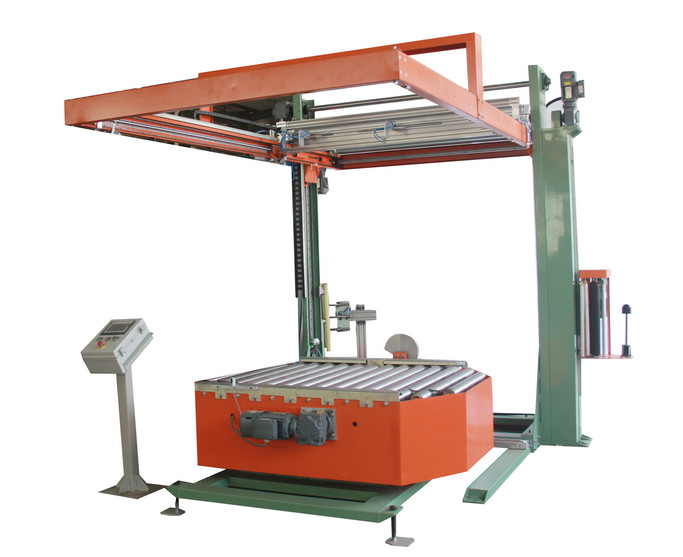

20T/h OD 260mm Rotary Automatic Pallet Wrapping Machine Use Rotary Stretch Wrapper

DT2000RFZ-FM on line rotary table top cover film pallet wrapping machine pallet rotary stretch wrapper

Technical description

1, Equipment Overview

1. Packing process

1.1 palletized products automatically enter the winding and packaging machine station through the conveyor line, and the winding packaging machine will automatically cover the top and wrap around. After the packaging parameters are set, the film will be automatically loaded and broken, and automatically transported to the follow-up conveying line;

1.2 the equipment can load film automatically, break film automatically after packaging, and weld film tail automatically.

2. Packaging materials

Pre stretched film for machine, width: 500mm, thickness: 17-35 μ m, maximum outer diameter: 260mm

Paper core inner hole: 76mm, paper core length: 500mm

Top coating: l: 1800mm, thickness: 50-80um, maximum weight of single coil: 60kg

3, Technical parameters of supplied products

3.1 dt2000rfz-fm on-line rotary table laminating machine

1. Main performance

1.1 PLC programmable control, winding top and bottom layer number, times can be set

1.2 photoelectric switch, automatically sense the height of goods

1.3 it has the functions of automatic fault diagnosis and alarm, query processing and emergency shutdown

1.4 manual reinforcement winding function, which can provide special protection for some parts

1.5 accurate positioning of turntable and frequency control of turntable

2. Main technical parameters

2.1 package specification: L1200 × w1200 × h1800mm (including pallet)

2.2 cargo weight: 2000 kg

2.3 packing efficiency: 20 Torr / h

2.4 turntable diameter: 2000 mm

2.5 turntable speed: 14rpm (max)

2.6 speed of conveying line: 12 m / min adjustable

2.7 turntable height: provided by customer

2.8 machine power: 4 KW 380V / 50Hz
