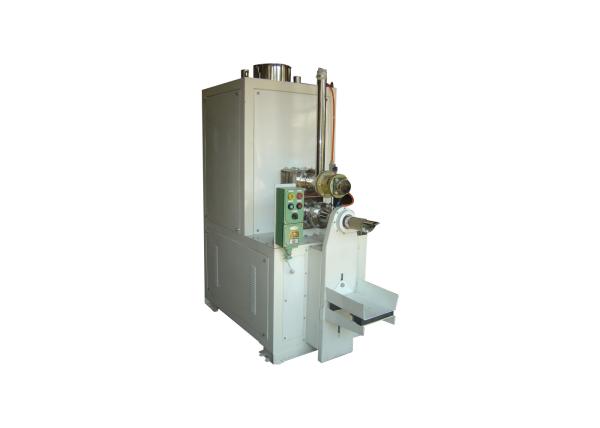

25kg Valve Bag Weighing And Bagging Machine

Ask Lasest Price
Brand Name :	Sanhe
Model Number :	DCS-25PV1
Certification :	ISO9001:2015, CE
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	90 Sets Per Month
Delivery Time :	90 days

Add to Cart

Product Details
Company Profile

25kg Valve Bag Weighing And Bagging Machine

The parameter and function table of the valve bag packer:

	DCS-25PV1(1) (exhausting type)	DCS-25PV1(2) (screw type)	DCS-25PV1(3) (airflow type)	DCS-25PV1(5) (horizontal impeller)	DCS-25PV1(6) (vertiacl impeller)
Scope of application
Suitable materials	Powder and ultrafine powder of good Air affinity	Powder and thin granule	Powder and thin granule	Powder and ultrafine powder	Powder and ultrafine powder
Suitable packing container	Upper and lower spiral air supply	single screw	air flow	Horizontal impeller	Vertical impeller
Technical parameters
Weighing range(Kg)	10-50	10-50	10-50	10-50	10-50
Packing speed(bag/H)	30-180	30-120	30-200	30-250	30-250
Packing Accuracy	Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard)
Control function
Automatic tare	○	○	○	○	○
Automatic quick and slow feeding	○	○	○	○	○
Automatic free fall compensation	○	○	○	○	○
Automatic minus deviation	▲	▲	▲	×	×
Automatic over weight alarms	○	○	○	○	○
Automatic self diagnosis failure	○	○	○	○	○
Manual/Automatic mode conversation	○	○	○	○	○
Communication port	▲	▲	▲	▲	▲
Regulatory function
Manual adjusting the height of bag	○	○	○	○	○
Suit for open and valve bag function	▲	▲	▲	▲	▲
Important auxiliary function
Blow bag function in advance	○	▲	○	○	○
Arch break function of hopper	○	○	○	○	○
Vibration at the bottom of the bag	○	○	○	○	○
Powder protection
Inflatable seal	▲	×	▲	×	×
Negative pressure dusting(not contain duster)	○	○	○	○	○
Automatic blow valve mouth	○	×	○	▲	▲
Safety protection
Electrostatic grounding	▲	▲	▲	▲	▲
ionic wind remove static	▲	▲	▲	▲	▲
Stop packing when lose power	○	○	○	○	○
Emergency stop	○	○	○	○	○
Ex-proof	▲	▲	▲	▲	▲
Mark: “○”is standard function；“▲”is choose function ；“×”is not has function

main features:

*valve bag packing for Powder and ultrafine powder.

*Can be twin-type packer

*Can made into semi-packing and palletizing line with conveyors, sewing machine, heat sealer, fall bag conveyor, reshaping conveyor, weight checker, reject conveyor, pallet magazine, stacker.

FAQ:

1. MOQ is one set .

2. Quality gurantee.

a strong efficient management for the big bag packing scale team overseas the product lines to gurantee that QC are well enforced. 100% orders are inspected before delivery .

3. Competive price

We have our own design technology team, our own factory, factory-to-client pricing made our goods at a very competitive prices with the overhead

4.Quality service

an excellent sales team will quote you and give you some suggestion on items with 24 hours

5. Service after sales

Machine warranty one year. supply the spare parts shipment in China region. Spare parts free of charge are supplied within one warranty year, easy damaged parts and man-made damage are exclusive, over one warranty year seller only charge spare part at cost price.

Seller will give buyer long term technology support. Seller offer buyer side operation manual in English. "

Option 1: (Supervion for Installation and Commission: **USD( **USD/Person/Day,not contain Round-trip air ticket expense,Accommodation and transportation expenses at buyer country.)

Option 2: Buyer can dispatch engineer to do inspection after production of machines finished, seller are responsible to offer your engineers' training in free of charge."

6. Our port : Shanghai port

7. Delivery time : usually 110 days after the deposit .

8. Packing way: by wooden pallet / wooden box
